Task: The user is interested in annotating some text and viewing the annotation.

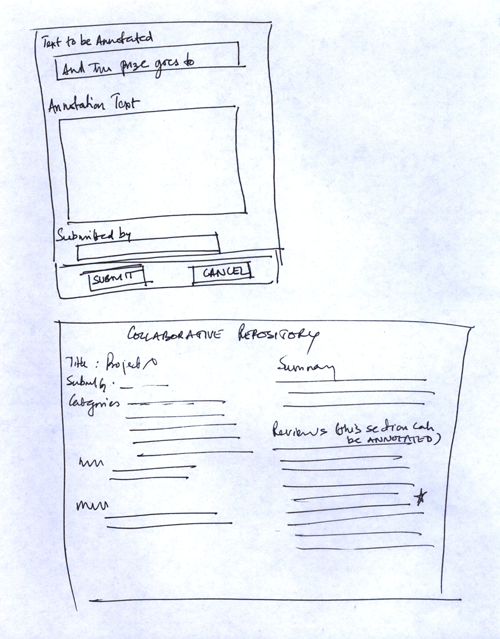

The top figure is an interface for adding annotations. The bottom figure below shows the view of how the website looks, with a star indicating the the annotation that the user has added.

Task: The user wants to view annotations.

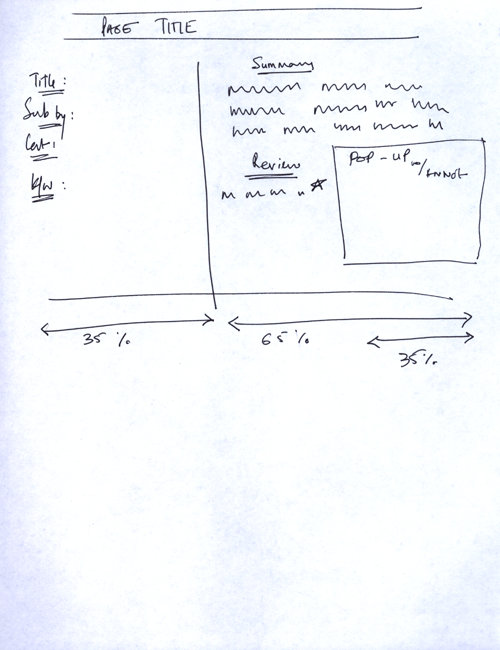

Option 1: The user sees the annotation as a pop-up which covers part of the screen (35% length, 40% height).

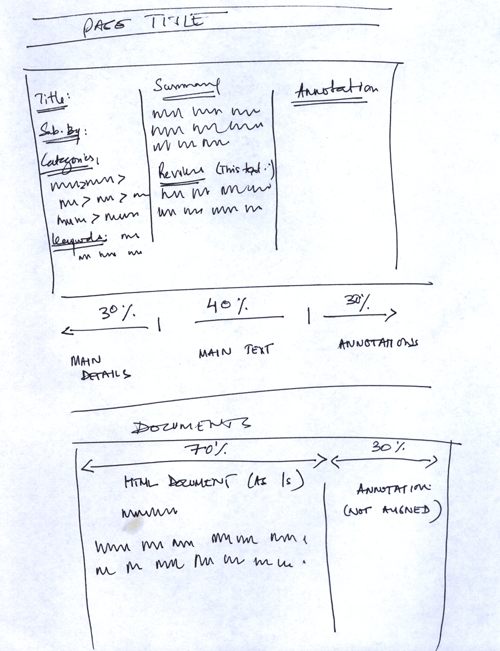

Option 2: The top image is an example of a "project" being annotated. The bottom image is an example of a "document" being annotated.
