On the menu bar at left, under Documentation, click on APIs.
Under Java 2 Platform, Standard Edition (J2SETM), click on J2SE 1.3.1 API Specification.
The lower left frame lists all of the classes and interfaces that are available. Navigate to the class you're looking for, and a description of it, its instance variables, and its methods will be displayed in the main frame.
Bookmarking this page is recommended, as it will often come in handy for reference about the Java classes that are available for use. In general, the Java site is a wealth of information about Java programming, containing tutorials, code snippets, and other helpful information.
Let's do a simple example.
First, download this Java file, SimpleDebug.java to your desktop.
Launch the Eclipse IDE by choosing Start > Programs > Software Development > Eclipse 2.0 from the Windows Start menu.
Choose File > New > Project...
Select Java and Java Project, and click Next.
Type SimpleDebug in the Project name field, and click Finish.
In the Package Explorer window, highlight the SimpleDebug project.
Right-click on the SimpleDebug project and choose "Import…" from the context-sensitive pop-up menu.
Select File System and click Next.

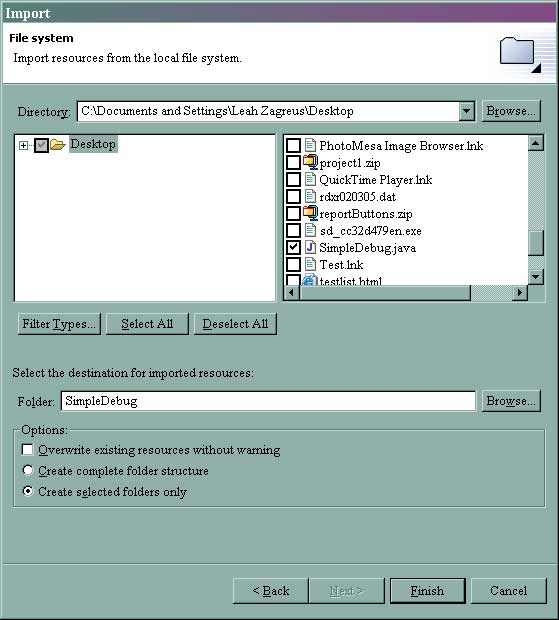

In the Import dialog, to the right of the blank "Directory:" field, click the "Browse…" button, navigate to your desktop, and click OK.
In the window on the right, check "SimpleDebug.java" and leave everything else blank. Click Finish.
SimpleDebug.java has been added to your SimpleDebug project.
Double-click on the SimpleDebug.java file to open it.
You have now created a project using an existing *.java file. Now on to the debugging.
This code has a bug. If you can tell what it is by looking at it, don"t fix it yet. We"re going to run it in order to observe a very common programming error.
Choose Run > Run As > Java Application.
The code does not execute properly. There is no output, and the Java console at bottom indicates that an ArrayIndexOutOfBoundsException was thrown, and shows the line number (16 in this example) where the problem occurred.
One technique that"s used is to insert print statements before and after the line where the exception is thrown (or where the problem is suspected to be - not every problem that needs to be debugged throws an exception!). Insert 2 println statements around that line so that part of the code looks like this:
System.out.println("before the for loop");
for (int i = 0; i <= intArray.length; i++) {
System.out.println("in the for loop and i is " + i);
Run it again.
Now we can see that the println statement before the for loop was output (and that"s no surprise because we know it"s the for loop line that throws the exception). We also see that the println statement within the for loop also was output several times.
If we count the number of times that line was output, we see that it happened 11 times, which is one more than the length of the array. This means that we have been attempting to access the 11th element of the array, which doesn"t exist. It is a very common mistake to set up the conditional part of the for loop with the incorrect less-than-or-equals comparison operator rather than the correct less-than comparison operator.
Now modify the code to correct this mistake. Re-run it and it should execute properly.
A much more powerful method is stepping through the code. You can look at the values for each of the variables, and by watching them as you progress through the code, observe where they get filled with incorrect values.
To do this, right-click to the left of this line in the SimpleDebug.java window, and choose "Add Breakpoint" from the context-sensitive pop-up menu.
intArray[i] = i;
A small circle indicating a breakpoint appears.
Now we will run the program in Debug mode.
Choose Run > Debug As > Java Application. The code will begin executing, then stop as soon as it hits the breakpoint.
The important windows to watch here are the SimpleDebug.java code window, and the Variables window at the upper right. The Variables window shows the current value of each of the variables that the method that we"re in knows about. For example, it shows that MAX_LENGTH is 10, i is 0, and sum is 0. We can also look at the contents of intArray. Click on the plus sign next to intArray to extend the contents.
Now let"s step through the code. Choose Run > Step Over (or press F6) a few times, and watch how the array gets filled up with the value of i each time through the loop.
Step Over continues to execute, line by line, within the current method, until the method finishes executing or the program terminates with errors.
Now let"s try another example, using the Vector and Enumeration classes. Quit the current debugging process by choosing Run > Terminate. (Note that if you want to debug the same application again, you need to either choose Run > Debug Last Launched, or be sure to click in the SimpleDebug.java window before choosing Run > Debug As > Java Application.)
Note that you"ll have to include this line at the top of any file that uses the Vector class.
import java.util.Vector;
Download VectorDemo.java.
Create a new project as above, and import VectorDemo.java into the new project.
This file was downloaded with sourcecode from Java 2: The Complete Reference, 4th ed., by Herbert Schildt. Note that some of the formatting is a bit off. You can reformat it quickly, giving it the proper indentation by selecting all and then choosing Source > Format.
This sample program uses many of the methods of the Vector class, including methods that add elements, get the first and last elements, and check the current capacity. The code also includes the Enumeration class, which is used to sequentially iterate through the elements of a Collection class.
As described above, set breakpoints in the code and use the debugger to step through and watch the variables change. Expand the Vector in the Variables window so you can watch as items are added.
One and only one of the classes must have a main() method.
All of the class files need to be imported into your project.
As an example, let"s use one of the solutions to the Schedule exercise from Lab 4. Download these files to your desktop, Schedule.java, Course.java, Professor.java. Create a new project called ScheduleLab6, and import the 3 files into it.
Open Schedule.java.
Run the program to ensure that everything links correctly.
Place a breakpoint on the first line of the main() method in Schedule.java:
Professor marti = new Professor("Marti Hearst", "Associate Professor", "212 South Hall");
Now choose Run > Debug As > Java Application to run the program in debug mode.
In the previous debugging examples, we used Step Over to step through the code. Now we will use Step Into to drill down into the method being called on this line (the Professor constructor).
Choose Run > Step Into (or press F5). (You might get a strange looking page that says "Class File Editor, Source not found." If that happens, choose Run > Step Return (or press F7) a couple of times to get back out to the main() method. Then try Step Into again.)
Observe that the program control snaps to the Professor constructor, and its file (Professor.java) is opened. Step Over a few times until the constructor finishes executing the creation of the "marti" Professor object, and you snap back up to the main() method in Schedule.java.
Step Into again, to go into the constructor for the "ray" Professor object.
Instead of using Step Over, use Step Return to immediately snap back up to the main() method.
Step Over lets us step through the code at the current level. If the current line of code contains a method call, using Step Into will take us down one level into that method, otherwise it will behave like Step Over. And Step Return will finish executing the current method and snap us up one level to the previous calling function.
Let's use these three Java files to illustrate another handy IDE feature. First terminate the current debugging session. Then change to the Java perspective by choosing Window > Open Perspective > Java. Also turn off any breakpoints by right-clicking on them and choosing Remove Breakpoint from the context-sensitive menu.
When your project contains many lengthy files, it can get difficult to determine where a certain method or class was declared. Here is a shortcut for finding the declaration of a class, method or variable.
Close any *.java files that are open, except for the Schedule.java file within the ScheduleLab6 project.
Select the word "Professor" anywhere in the file by double-clicking on it.
Right-click on the selected word and choose Open Declaration. The Professor file is opened, and the appropriate Professor constructor is highlighted.
Go back to Schedule.java, and do the same thing for method printCourseInfo(). The Course file is opened, and that method is highlighted. The same technique will work for variables too.
NOTE: Although you can employ this technique for the classes you use from the Java class libraries (e.g., String) in addition to the classes you or your project partners write, it is best to use the Java API documentation web site as described above. This contains a much richer set of information about the Java classes.
For more information on using Eclipse, see the Help files at Help > Welcome > Eclipse Platform and click on Workbench User Guide.
