INTERACTIVE PROTOTYPE



Prototype Screen Shuts

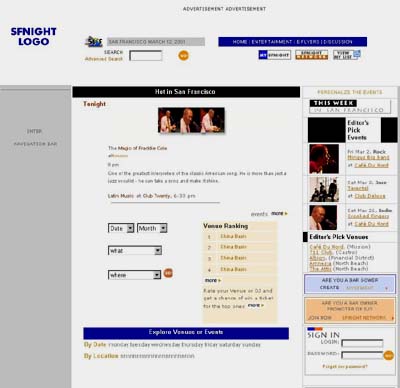

Home Page
The home page has elements which is in study by the final project, and elements introduced by 213 project. We are only focused in the interaction related to Customization (nightlife consumers, but not nightlife players).
The right area was object of our design, including the login for those who don't use cookies.



If users click on MYSFNIGHT, on Personalize the Events, or Sign up, they would go to the Sign Up page.


Sign Up page
The blue areas highlights important messages to user to make the registration a more secure and easy process







Homepage customized
After registration, users go back to the homepage. The feedback is given by changing color of the events of "This Week in San Francisco" and the given the friendly message Welcome.

Also disappear the sign in information for the user who allows cookies in their computer.

The messages calling for sign up, also disappear.

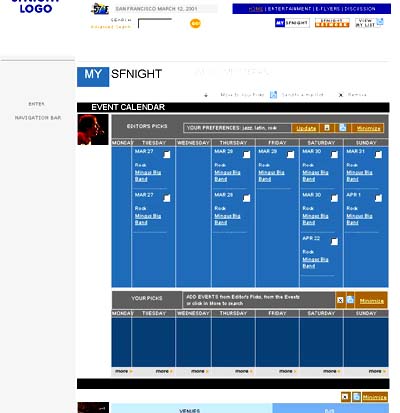

MySFnight
If user clicks on mySFnight and has already sign up, recommendations to their events and music type preferences will appear in the Calendar, at Editor's Pick

User also can add his/er picks from any event profile, from any search result, and/or from the Editor's Picks at MySFnight.

Also user can Minimize any part. This addresses user desire of not using a specific feature, or not having to look at an empty area that they are not using at the moment.

By marking the square, and clicking one of the icons available for that part, user can manipulate the information, by send to an e-mail list, removing, etc.






Search Results
We only focused in the interaction with customization. User can check the elements, add to mySFnight or send to an e-mail list.

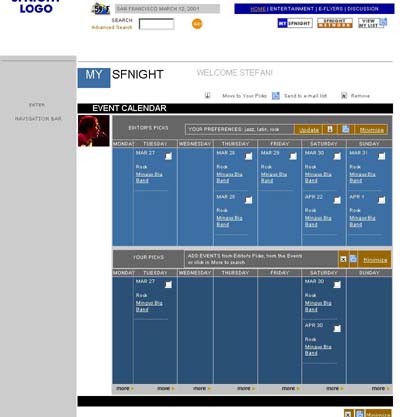

MySFnight with Added Events
User can added by selecting elements at the top area, or by the other pages of SFnight.

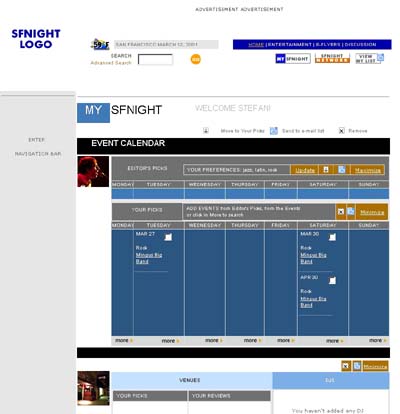

MySFnight: Editor's Picks Minimized
If user don't want use one feature, or if there are too many options at Editor's Picks, user can Minimize the area..






MySFnight: Other Alternative
Instead of check box + icons, only icons. We might want to do a further study in this option.

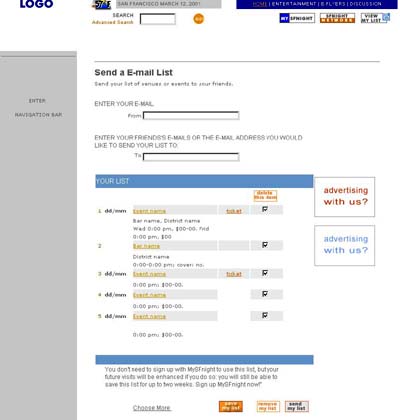

E-mai List
Several interactions were necessary.






Venue or Event page
From there user can Add to MySFnight or Send to Email List.







........updated: Mar 22, 2001
